WD 1713+393
All names: LP 226-48, NLTT 44447, LSPM J1714+3918, PM J17148+3918, Gaia EDR3 1341543072245722752, 2MASS J17145080+3918370, J1714+3918, GALEX J171450.8+391839, USNO-B1.0 1293-00276844, 17148+3918, WDJ171450.80+391837.43, TIC 85585141, Gaia DR2 1341543072245722752, Gaia DR3 1341543072245722752, WD 1713+393, PSO J258.7115+39.3112
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | O'Brien et al. 2024 | Hardy et al. 2023a | Caron et al. 2023 | McCleery et al. 2020 | Blouin et al. 2019 | MWDD H | Gaia DR2 | Stilism | Ferrario et al. 2015 | Limoges et al. 2015 | Kawka et Vennes 2006 | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 17 14 50.78 (0.03) | 17 14 50.78 (0.04) | 17 14 50.78 (0.04) | 17 14 50.78 | 17 14 50.80 (0.03) | 17 14 50.78 | 17 14 50.14 | |||||||||||
| Declination | 39 18 40.63 (0.03) | 39 18 40.53 (0.04) | 39 18 40.53 (0.04) | 39 18 40.63 | 39 18 37.43 (0.03) | 39 18 40.53 | 39 18 22.32 | |||||||||||
| Spectral type | DAH | DAH | DAH | DAH | DAP | DA | DA | DAP | DAP | DA | DAP | DAP8.1 | ||||||
| Effective temperature | [K] | 6694.0 (53) | 6577.0 (26) | 6743.0 (16) | 6615.6 (33) | 6710.0 (50) | 6743.0 | 7000.0 (1000) | 7010.0 (123) | 7000.0 (1000) | 6659.0 (29) | |||||||
| log(g) | [cgs] | 7.78 (0.02) | 7.77 (0.04) | 7.81 (0.005) | 7.77 (0.01) | 7.80 (0.02) | 7.81 | 8.00 (0) | 7.77 (0.009) | |||||||||
| Mass | [M☉] | 0.467 (0.007) | 0.460744726389191 (0.04) | 0.485 (0.004) | 0.48 (0.01) | 0.483 | 0.59 | 0.59 (0.1) | 0.59 | 0.464 (0.006) | ||||||||
| log(Luminosity) | [L☉] | -3.45 | ||||||||||||||||
| Cooling age | [Gyr] | 1.3300 | 1.2880 (0.04) | 1.2800 | ||||||||||||||
| log(H/He) | ||||||||||||||||||
| log(C/He) | ||||||||||||||||||
| log(Ca/He) | ||||||||||||||||||
| log(Ca/H) | ||||||||||||||||||
| log(C/H) | ||||||||||||||||||
| log(N/H) | ||||||||||||||||||
| log(O/H) | ||||||||||||||||||
| log(Na/H) | ||||||||||||||||||
| log(Mg/H) | ||||||||||||||||||
| log(Al/H) | ||||||||||||||||||
| log(Si/H) | ||||||||||||||||||
| log(P/H) | ||||||||||||||||||
| log(S/H) | ||||||||||||||||||
| log(Sc/H) | ||||||||||||||||||
| log(Ti/H) | ||||||||||||||||||
| log(Cr/H) | ||||||||||||||||||
| log(Mn/H) | ||||||||||||||||||
| log(Fe/H) | ||||||||||||||||||
| log(Ni/H) | ||||||||||||||||||
| Parallax | [mas] | 25.26 (0.03) | 25.26 (0.03) | 25.26 (0.04) | 25.26 (0.04) | 25.26 (0.04) | 25.26 (0.04) | 25.26 | 25.26 (0.03) | 25.26 (0.04) | ||||||||
| Distance | [pc] | 39.58 (0.05) | 39.59 (0.05) | 39.59 (0.06) | 39.60 (0.07) | 39.59 (0.07) | 39.60 (0.07) | 38.20 (6) | 32.00 | 39.58 | 39.58 (0.05) | 39.60 (0.07) | ||||||
| Composition | H | H | H | H | H | |||||||||||||
| Proper motion (right ascension) | [mas/yr] | -13.21216485 (0.04) | -13.19767125 (0.08) | -13.212 (0.04) | -13.19767125 | |||||||||||||
| Proper motion (declination) | [mas/yr] | 200.1863625 (0.04) | 200.1314165 (0.08) | 200.186 (0.04) | 200.1314165 | |||||||||||||
| Variability | ||||||||||||||||||
| Magnetic | yes | yes | yes | |||||||||||||||
| Bd | [MG] | 2.3955708526817148 | 1.3 | |||||||||||||||
| Infrared excess (disk) | ||||||||||||||||||
| Binarity | ||||||||||||||||||
| B magnitude | 17.10 | |||||||||||||||||
| V magnitude | ||||||||||||||||||
| R magnitude | 16.50 | |||||||||||||||||
| I magnitude | ||||||||||||||||||
| J magnitude | 15.57 (0.009) | 15.63 (0.06) | 15.63 (0.06) | |||||||||||||||
| H magnitude | 15.38 (0.09) | 15.38 (0.09) | 15.38 (0.09) | |||||||||||||||
| K magnitude | 15.41 (0.2) | 15.41 (0.2) | 15.41 (0.2) | |||||||||||||||
| u magnitude | 17.15 (0.008) | 17.17 (0.008) | ||||||||||||||||
| g magnitude | 16.52 (0.002) | 16.55 (0.004) | ||||||||||||||||
| r magnitude | 16.31 (0.004) | 16.31 (0.004) | ||||||||||||||||
| i magnitude | 16.26 (0.002) | 16.25 (0.004) | ||||||||||||||||
| z magnitude | 16.29 (0.004) | 16.27 (0.007) | ||||||||||||||||
| G magnitude | 16.29 (0.003) | 16.31 | 16.31 | 16.29 | 16.29 (0.003) | 16.31 | ||||||||||||
| BP magnitude | 16.51 (0.003) | 16.52 | 16.52 | |||||||||||||||
| RP magnitude | 15.92 (0.003) | 15.93 | 15.93 | |||||||||||||||
| Pan g magnitude | 16.52 (0.002) | 16.52 (0.002) | 16.52 (0.002) | |||||||||||||||
| Pan r magnitude | 16.31 (0.004) | 16.31 (0.004) | 16.31 (0.004) | |||||||||||||||
| Pan i magnitude | 16.26 (0.002) | 16.26 (0.002) | 16.26 (0.002) | |||||||||||||||
| Pan z magnitude | 16.29 (0.004) | 16.29 (0.004) | 16.30 (0.004) | |||||||||||||||
| Pan y magnitude | 16.34 (0.008) | 16.34 (0.007) | 16.34 (0.007) | |||||||||||||||
| E(B-V) | 0.005 | |||||||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

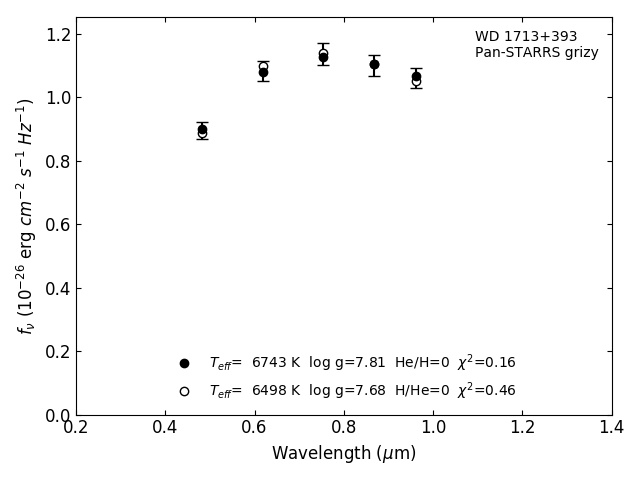

Photometric fit
