WD 1233+337
All names: CBS 355, WIRED J123611.36+333049.1, PG 1233+338, FBS B 527, 2MASS J12361138+3330493, Gaia EDR3 1517760529518658560, GALEX J123611.4+333048, LAMOST J123611.45+333048.9, WD 1233+337, SDSS J123611.36+333049.2, SDSS J123611.36+333049.1, Gaia DR3 1517760529518658560, Gaia DR2 1517760529518658560, FBS 1233+338, TIC 373706557
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Gianninas et al. 2011 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 12 36 11.34 (0.04) | 12 36 11.36 | 12 36 11.34 (0.06) | 12 36 11.34 | 12 36 11.38 (0.04) | 12 36 10.99 | 12 36 11.36 | ||||||
| Declination | 33 30 49.42 (0.03) | 33 30 49.15 | 33 30 49.40 (0.04) | 33 30 49.42 | 33 30 49.05 (0.03) | 33 30 47.52 | 33 30 49.18 | ||||||
| Spectral type | DA | DA | DA | DA2 | DA2 | DA | DA | ||||||
| Effective temperature | [K] | 18663.0 | 19680.0 (317) | 20500.0 (320) | 20597.0 (101) | ||||||||
| log(g) | [cgs] | 7.84 | 8.00 (0.05) | 7.95 (0.01) | 7.91 (0.02) | ||||||||
| Mass | [M☉] | 0.535 | 0.62 (0.03) | 0.598 (0.01) | 0.579 (0.009) | ||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.0644 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 9.92 (0.05) | 9.87 (0.07) | 9.92 | 9.92 (0.05) | ||||||||
| Distance | [pc] | 100.76 (0.5) | 101.32 (0.7) | 99.00 | 100.76 | 100.76 (0.5) | |||||||
| Composition | H | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | -28.91778502 (0.04) | -28.89752293 (0.1) | -28.918 (0.04) | |||||||||
| Proper motion (declination) | [mas/yr] | 22.75863692 (0.04) | 22.69698315 (0.07) | 22.759 (0.04) | |||||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | 15.76 | ||||||||||||
| V magnitude | |||||||||||||
| R magnitude | |||||||||||||
| I magnitude | |||||||||||||
| J magnitude | 16.11 (0.09) | ||||||||||||
| H magnitude | 16.16 (0.2) | ||||||||||||
| K magnitude | 15.85 (0.2) | ||||||||||||
| u magnitude | 15.56 (0.005) | 15.56 (0.005) | 15.57 (0.02) | ||||||||||
| g magnitude | 15.49 (0.003) | 15.49 (0.003) | 15.51 (0.02) | ||||||||||
| r magnitude | 15.86 (0.003) | 15.86 (0.003) | 15.86 (0.04) | ||||||||||
| i magnitude | 16.17 (0.004) | 16.17 (0.004) | 16.16 (0.01) | ||||||||||
| z magnitude | 16.47 (0.008) | 16.47 (0.008) | 16.47 (0.02) | ||||||||||
| G magnitude | 15.70 (0.003) | 15.72 | 15.70 | 15.70 (0.003) | |||||||||
| BP magnitude | 15.62 (0.003) | 15.58 | |||||||||||
| RP magnitude | 15.87 (0.006) | 15.87 | |||||||||||
| Pan g magnitude | 15.55 (0.005) | ||||||||||||
| Pan r magnitude | 15.88 (0.006) | ||||||||||||
| Pan i magnitude | 16.20 (0.003) | ||||||||||||
| Pan z magnitude | 16.45 (0.004) | ||||||||||||
| Pan y magnitude | 16.63 (0.009) | ||||||||||||
| E(B-V) | 0.003 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

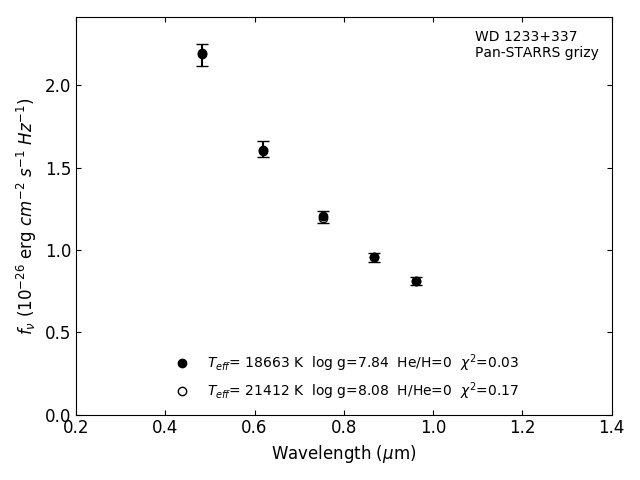

Photometric fit
