SDSS J160132.22+063901.7
All names: WD 1559+067, TIC 318473259, 2MASS J16013222+0639033, WIRED J160132.21+063901.7, Gaia EDR3 4450765864570779136, Gaia DR2 4450765864570779136, [HHD2009] SDSS J1601+0639, USNO-B1.0 0966-00269765, SDSS J160132.22+063901.7, SDSS J160132.16+063901.7, LSPM J1601+0639, SDSS J160132.21+063901.7, Gaia DR3 4450765864570779136
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | sdss-wdms.org (29/04/2016) | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 16 01 32.13 (0.08) | 16 01 32.22 | 16 01 32.13 (0.1) | 16 01 32.21 | 16 01 32.13 | 16 01 32.24 (0.08) | 16 01 31.94 | 16 01 32.22 | |||||
| Declination | 06 38 59.87 (0.06) | 06 39 01.71 | 06 38 59.95 (0.07) | 06 39 01.69 | 06 38 59.87 | 06 39 02.23 (0.06) | 06 38 58.20 | 06 39 01.74 | |||||
| Spectral type | DA+M | DA+M | DA | DA+M | DA d | DA+M | DA+MS | ||||||
| Effective temperature | [K] | 9386.0 | 9731.0 (65) | 9504.0 (156) | 18195.0 (263) | ||||||||
| log(g) | [cgs] | 7.98 | 8.26 (0.1) | 7.99 (0.03) | 6.40 (0.05) | ||||||||
| Mass | [M☉] | 0.589 | 0.76 (0.08) | 0.592 (0.03) | |||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.6947 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 9.38 (0.1) | 9.52 (0.1) | 9.38 | 9.38 (0.1) | ||||||||
| Distance | [pc] | 106.56 (1) | 105.09 (1) | 612.00 (77) | 106.56 | 106.56 (1) | |||||||
| Composition | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -104.6492649 (0.1) | -104.3421929 (0.2) | -104.649 (0.1) | |||||||||
| Proper motion (declination) | [mas/yr] | -147.248451 (0.08) | -147.2569168 (0.1) | -147.248 (0.08) | |||||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | WDMS | WDMS | WDMS | ||||||||||
| B magnitude | 17.50 | ||||||||||||
| V magnitude | |||||||||||||
| R magnitude | 16.70 | ||||||||||||
| I magnitude | |||||||||||||
| J magnitude | 15.51 (0.07) | ||||||||||||
| H magnitude | 14.89 (0.08) | ||||||||||||
| K magnitude | 15.04 (0.1) | ||||||||||||
| u magnitude | 18.05 (0.01) | 17.94 | 18.05 (0.01) | 17.94 | 17.95 (0.02) | ||||||||
| g magnitude | 17.55 (0.005) | 17.50 | 17.55 (0.005) | 17.49 | 17.50 (0.02) | ||||||||
| r magnitude | 17.57 (0.006) | 17.54 | 17.57 (0.006) | 17.53 | 17.54 (0.02) | ||||||||
| i magnitude | 17.69 (0.007) | 17.54 | 17.69 (0.007) | 17.54 | 17.55 (0.04) | ||||||||
| z magnitude | 17.77 (0.02) | 17.80 | 17.77 (0.02) | 17.80 | 17.82 (0.2) | ||||||||
| G magnitude | 17.47 (0.01) | 17.49 | 17.47 | 17.47 (0.003) | |||||||||
| BP magnitude | 17.54 (0.01) | 17.54 | |||||||||||
| RP magnitude | 17.35 (0.009) | 17.34 | |||||||||||
| Pan g magnitude | 17.49 (0.003) | ||||||||||||
| Pan r magnitude | 17.55 (0.005) | ||||||||||||
| Pan i magnitude | 17.65 (0.004) | ||||||||||||
| Pan z magnitude | 17.78 (0.004) | ||||||||||||
| Pan y magnitude | 17.88 (0.007) | ||||||||||||
| E(B-V) | 0.013 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

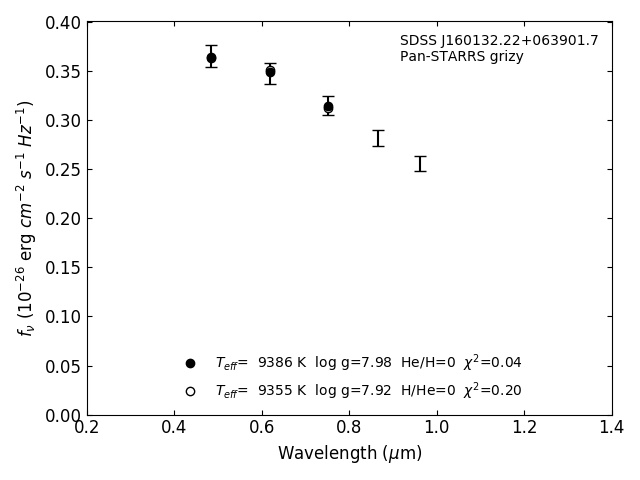

Photometric fit
