PG 2322+207
All names: TIC 243135276, Gaia EDR3 2825795087259417984, GALEX J232435.1+205633, Gaia DR2 2825795087259417984, HS 2322+2040, SDSS J232435.16+205633.7, Gaia DR3 2825795087259417984, PG 2322+207, UCAC4 555-135807, LAMOST J232435.16+205633.7, WD 2322+206, WDJ232435.20+205633.83, 2MASS J23243519+2056338, USNO-B1.0 1109-00593295
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | MWDD H | Gaia DR2 | Stilism | Guo et al. 2015 | Gianninas et al. 2011 | Koester et al. 2009 | Mukadam et al. 2004 | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 23 24 35.16 (0.03) | 23 24 35.16 (0.04) | 23 24 35.16 | 23 24 35.19 (0.03) | 23 24 35.16 | 23 24 34.73 | ||||||||
| Declination | 20 56 33.61 (0.02) | 20 56 33.62 (0.03) | 20 56 33.61 | 20 56 33.83 (0.02) | 20 56 33.62 | 20 56 29.40 | ||||||||
| Spectral type | DA | DA | DA | DA | DA3.7 | DA4 | ||||||||
| Effective temperature | [K] | 12772.0 | 12884.0 (356) | 13560.0 (266) | 12636.0 (28) | 13000.0 | 13014.0 (126) | |||||||
| log(g) | [cgs] | 8.00 | 8.10 (0.1) | 7.96 (0.05) | 7.84 (0.006) | 8.02 (0.007) | ||||||||
| Mass | [M☉] | 0.608 | 0.67 (0.07) | 0.58 (0.03) | 0.617 (0.006) | |||||||||
| log(Luminosity) | [L☉] | |||||||||||||
| Cooling age | [Gyr] | 0.3163 | ||||||||||||
| log(H/He) | ||||||||||||||
| log(C/He) | ||||||||||||||
| log(Ca/He) | ||||||||||||||
| log(Ca/H) | ||||||||||||||
| log(C/H) | ||||||||||||||
| log(N/H) | ||||||||||||||
| log(O/H) | ||||||||||||||
| log(Na/H) | ||||||||||||||
| log(Mg/H) | ||||||||||||||
| log(Al/H) | ||||||||||||||
| log(Si/H) | ||||||||||||||
| log(P/H) | ||||||||||||||
| log(S/H) | ||||||||||||||
| log(Sc/H) | ||||||||||||||
| log(Ti/H) | ||||||||||||||
| log(Cr/H) | ||||||||||||||
| log(Mn/H) | ||||||||||||||
| log(Fe/H) | ||||||||||||||
| log(Ni/H) | ||||||||||||||
| Parallax | [mas] | 16.03 (0.04) | 16.07 (0.07) | 16.03 | 16.03 (0.04) | 16.07 (0.07) | ||||||||
| Distance | [pc] | 62.38 (0.2) | 62.24 (0.3) | 96.00 | 62.38 | 62.38 (0.2) | 62.24 (0.3) | |||||||
| Composition | H | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -32.57106546 (0.03) | -32.69417464 (0.09) | -32.571 (0.03) | -32.69417464 | |||||||||
| Proper motion (declination) | [mas/yr] | -13.51821705 (0.03) | -13.55745444 (0.07) | -13.518 (0.03) | -13.55745444 | |||||||||
| Variability | NOV | NOV | ||||||||||||
| Magnetic | ||||||||||||||
| Bd | [MG] | |||||||||||||
| Infrared excess (disk) | ||||||||||||||
| Binarity | ||||||||||||||
| B magnitude | 15.55 (0.04) | |||||||||||||
| V magnitude | 15.59 | 15.47 (0.03) | ||||||||||||
| R magnitude | 15.82 (0.06) | |||||||||||||
| I magnitude | ||||||||||||||
| J magnitude | 15.74 (0.01) | |||||||||||||
| H magnitude | 15.71 (0.03) | |||||||||||||
| K magnitude | 15.35 (0.07) | |||||||||||||
| u magnitude | 15.87 (0.005) | 15.87 (0.005) | ||||||||||||
| g magnitude | 15.46 (0.003) | 15.46 (0.003) | ||||||||||||
| r magnitude | 15.68 (0.004) | 15.68 (0.004) | ||||||||||||
| i magnitude | 15.89 (0.004) | 15.89 (0.004) | ||||||||||||
| z magnitude | 16.17 (0.007) | 16.17 (0.007) | ||||||||||||
| G magnitude | 15.56 (0.002) | 15.58 | 15.56 | 15.56 (0.003) | 15.58 | |||||||||
| BP magnitude | 15.56 (0.002) | 15.56 | 15.56 | |||||||||||
| RP magnitude | 15.61 (0.002) | 15.62 | 15.62 | |||||||||||
| Pan g magnitude | 15.47 (0.002) | |||||||||||||
| Pan r magnitude | 15.68 (0.002) | |||||||||||||
| Pan i magnitude | 15.93 (0.004) | |||||||||||||
| Pan z magnitude | 16.15 (0.003) | |||||||||||||
| Pan y magnitude | 16.29 (0.005) | |||||||||||||
| E(B-V) | 0.005 | |||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

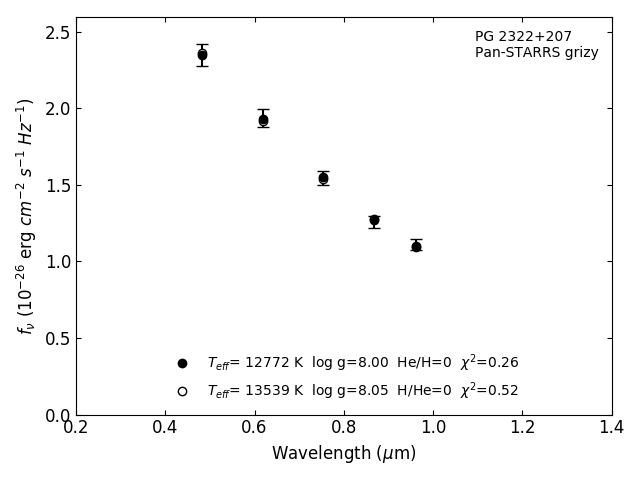

Photometric fit
