HS 2220+2146A
All names: UCAC4 561-138949, PSO J222301.743+220124.615, SDSS J222301.62+220131.3, J2223+2201, HS 2220+2146A, ** SLN 44A, PM J22230+2201N, 22230+2201S, 2MASS J22230160+2201318, Gaia DR2 1874954641491354624, WDJ222301.71+220125.28, WD 2220+217.1, Gaia DR2 1874954645786146304, USNO-B1.0 1120-00619684, WD 2220+217, WDS J22230+2202A
| Parameter | Unit | Kilic et al. 2020 | MWDD H | Pan-STARRS DR1 | Gaia DR2 | Limoges et al. 2015 | Koester et al. 2009 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 22 23 01.76 (0.06) | 22 23 01.60 (0.05) | 22 23 01.76 | 22 23 01.63 | ||||||
| Declination | 22 01 24.32 (0.07) | 22 01 31.69 (0.05) | 22 01 24.32 | 22 01 23.52 | ||||||
| Spectral type | DA | DA | DA | DA | DA3.5 | |||||
| Effective temperature | [K] | 13028.0 (88) | 13295.0 | 17730.0 (336) | 14601.0 (32) | |||||
| log(g) | [cgs] | 8.22 (0.006) | 8.24 | 8.46 (0.06) | 8.08 (0.01) | |||||
| Mass | [M☉] | 0.745 (0.006) | 0.755 | 0.91 (0.04) | ||||||
| log(Luminosity) | [L☉] | -2.12 | ||||||||
| Cooling age | [Gyr] | 0.4020 | ||||||||
| log(H/He) | ||||||||||
| log(C/He) | ||||||||||
| log(Ca/He) | ||||||||||
| log(Ca/H) | ||||||||||
| log(C/H) | ||||||||||
| log(N/H) | ||||||||||
| log(O/H) | ||||||||||
| log(Na/H) | ||||||||||
| log(Mg/H) | ||||||||||
| log(Al/H) | ||||||||||
| log(Si/H) | ||||||||||
| log(P/H) | ||||||||||
| log(S/H) | ||||||||||
| log(Sc/H) | ||||||||||
| log(Ti/H) | ||||||||||
| log(Cr/H) | ||||||||||
| log(Mn/H) | ||||||||||
| log(Fe/H) | ||||||||||
| log(Ni/H) | ||||||||||
| Parallax | [mas] | 14.25 (0.07) | 14.06 (0.06) | 14.25 (0.07) | ||||||
| Distance | [pc] | 70.17 (0.4) | 74.70 (2) | 71.11 (0.3) | 70.17 (0.4) | |||||
| Composition | H | H | ||||||||
| Proper motion (right ascension) | [mas/yr] | 51.14080638 (0.1) | 54.0 | 51.985 (0.1) | 51.14080638 | |||||
| Proper motion (declination) | [mas/yr] | -62.34896919 (0.1) | -62.0 | -61.558 (0.1) | -62.34896919 | |||||
| Variability | ||||||||||
| Magnetic | ||||||||||
| Bd | [MG] | |||||||||
| Infrared excess (disk) | ||||||||||
| Binarity | ||||||||||
| B magnitude | 15.00 | 14.70 | ||||||||
| V magnitude | ||||||||||
| R magnitude | 15.95 (0.1) | |||||||||
| I magnitude | ||||||||||
| J magnitude | 16.42 | 16.05 (0.1) | ||||||||
| H magnitude | 15.71 | |||||||||
| K magnitude | 16.10 | |||||||||
| u magnitude | 16.36 | 15.66 (0.01) | 16.36 (0.006) | |||||||
| g magnitude | 15.99 | 15.60 (0.02) | 16.00 (0.004) | |||||||
| r magnitude | 16.20 | 15.91 (0.009) | 16.21 (0.005) | |||||||
| i magnitude | 16.45 | 16.21 (0.01) | 16.46 (0.005) | |||||||
| z magnitude | 16.69 | 16.48 (0.02) | 16.70 (0.01) | |||||||
| G magnitude | 16.14 | 15.79 (0.0008) | 16.14 | |||||||
| BP magnitude | 16.10 | 16.10 | ||||||||
| RP magnitude | 16.18 | 16.18 | ||||||||
| Pan g magnitude | 16.00 (0.002) | |||||||||
| Pan r magnitude | 16.24 (0.005) | |||||||||
| Pan i magnitude | 16.48 (0.003) | |||||||||
| Pan z magnitude | 16.70 (0.004) | |||||||||
| Pan y magnitude | 16.85 (0.01) | |||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

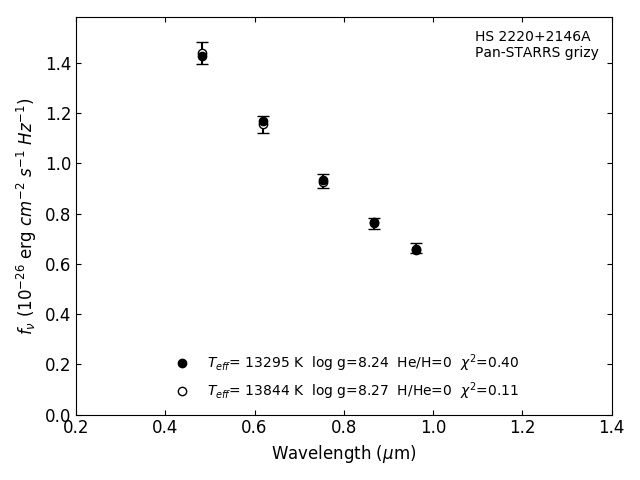

Photometric fit
